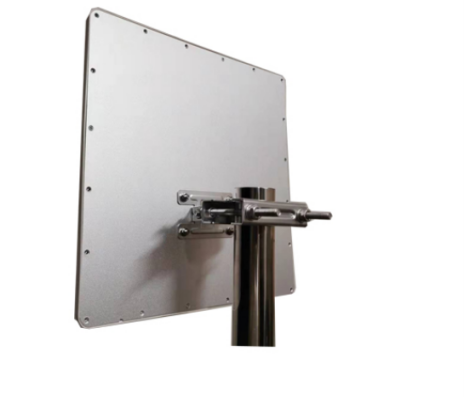

TDJ-0911BKD12

Panel Antenna

TDJ-0911BKD12 panel antenna, 900–1100 MHz, 12 dBi gain, VSWR ≤2.0. For point-to-area, point-to-point & point-to-multipoint. 50 Ω, vertical polarization, 38×38×4.5 cm, 1.8 kg, fits 40–50 mm pole, N-female or custom connector.
GET A QUOTE

Highlights

Applications

1.  900~1100MHz frequency range 2. Point-to-area coverage 3.  Point-to-point and point-to-multipoint systems

Features

1.  High gain, low VSWR 2.  Sleek antenna appearance 3.  Excellent environmental adaptability

Technical Specification

Model：TDJ-0911BKD12 Frequency range (MHz)：900～1100 Bandwidth (MHz)：200 Gain (dBi)：12 Horizontal beamwidth (°)：45~50 Vertical beamwidth (°)：40~44 VSWR：≤2.0 Input impedance (Ω)：50 Polarization：vertical Max power (W)：100 Connector type：N female or customization Dimensions (cm)：38×38×4.5 Weight (kg)：1.8 Pole diameter (mm)：φ40~ φ50

Standard Accessories of TDJ-0911BKD12

Optional Accessories of TDJ-0911BKD12

Related Products of TDJ-0911BKD12
